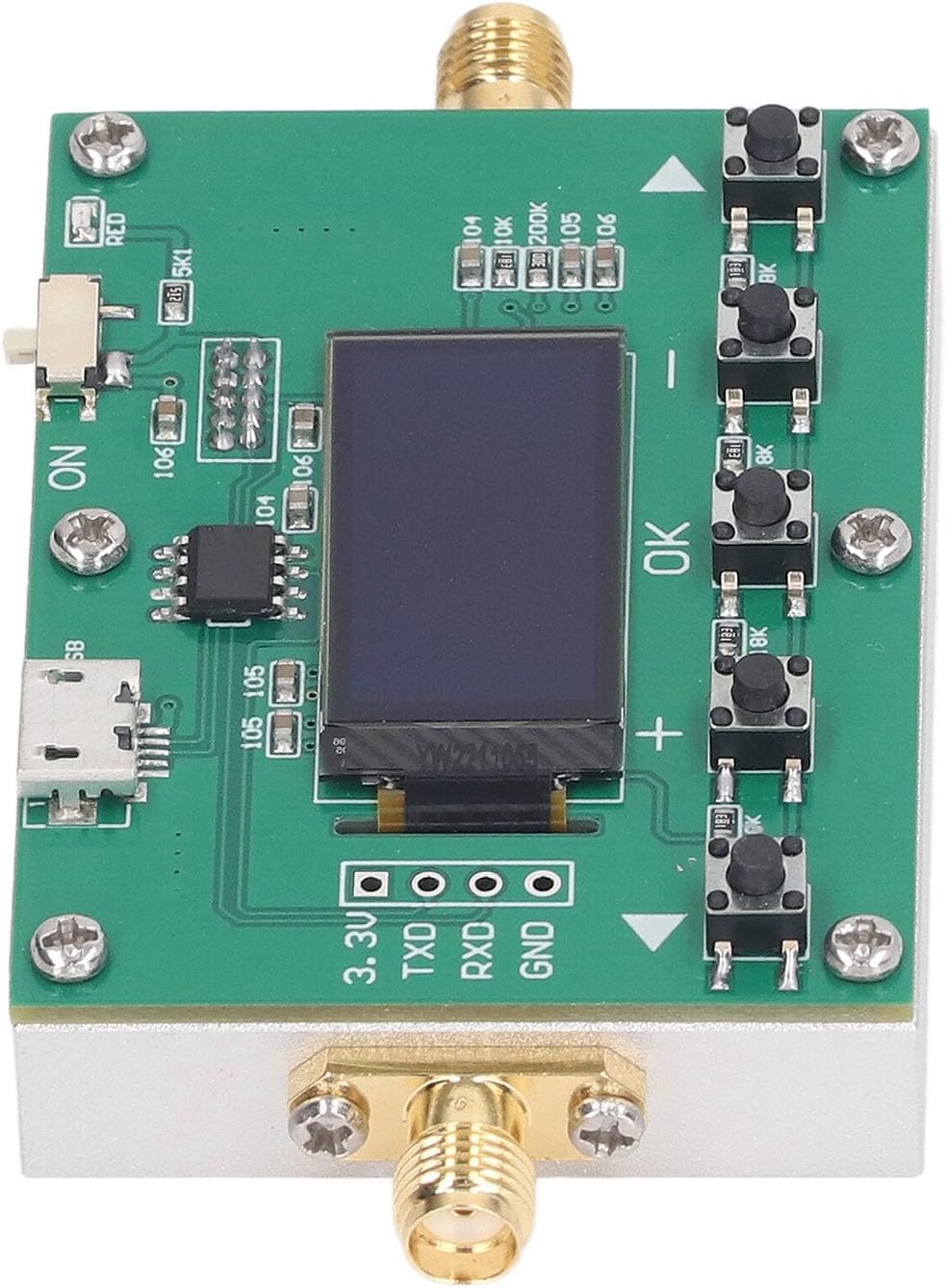

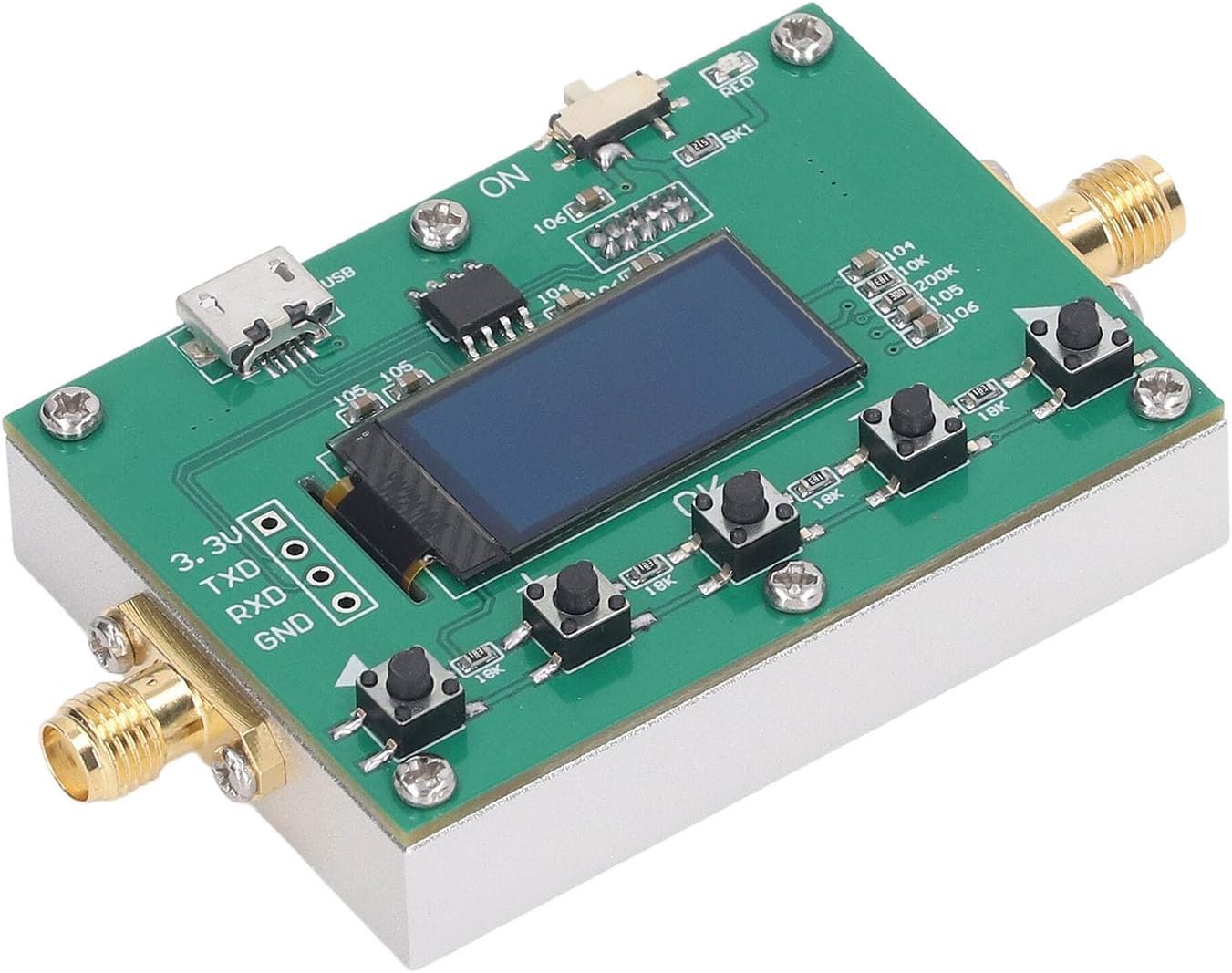

Digital RF Programmable Attenuator Module with CNC Case LF - 6GHz Working Frequency 31.75dB Range 0.25dB Step Size and Organic Light Emitting Diode Display for Signal Control

Item Type: Digital AttenuatorMaterial: Aluminum alloy and PCBOperating Frequency: 0-6GHzAttenuation Adjustment Range: 0-31.75dBAttenuation Step: 0.25 (dB)Insertion Loss: 1.5dB ( end insertion loss will be greater)Standing Wave Ratio: 1.4Attenuation Accuracy: ±0.25dB maximumRated Power: Less than 1WConnector Form: SMA femaleTemperature Range: -10℃ ~ +50℃(operating), -40℃ ~ +70℃(not operating)Input Output Impedance: 50ohmsPackage List：1 x Attenuator Module1 x Power Cord(random color style)

• Double Sided PCB Construction: The module utilizes a 1.6 mm thick double sided PCB with 1.5 oz copper and a tin spraying process to support consistent current flow.
• Heat Dissipation Management: Designed with a large area on the circuit board to facilitate effective thermal management during extended operation times.
• Integrated CNC Housing: Features a CNC case with integrated and a smooth for simplified installation and protection of internal components.
• Organic Light Emitting Diode Display: Includes a built in display screen for monitoring settings and parameters during the programmable attenuation process.
• Technical Operating Parameters: Operates within a frequency range of LF - 6GHz with an adjustment range of 0 - 31.75dB and a precision step size of 0.25 dB.
